Standards : DIN 934 - ISO 4032 - UNI 5588 - AFNOR 27411


Technical Data:

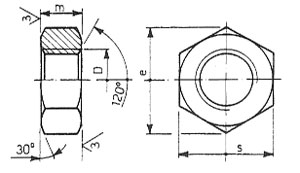

M Pitch m (h14) s e min Weight Kg/
1000 Pcs
3 0.5 2.4 5.5 6.08 0.38
4 0.7 3.2 7 7.74 0.80
5 0.8 4 8 8.87 1.22
6 1 5 10 11.05 2.46
7 1 5.5 11 12.12 3.09
8 1.25 6.5 13 14.38 5.28
10 1.5 8 17 * 18.90 11.5
17.77
12 1.75 10 19 * 21.10 16.9
20.03
14 2 11 22 * 24.49 24.7
23.35
16 2 13 24 26.75 32.9
18 2.5 15 27 30.14 49.4
20 2.5 16 30 33.53 63.3
22 2.5 18 32 * 35.72 76.6
37.29
24 3 19 36 39.98 108
27 3 22 41 45.63 163
30 3.5 24 46 51.28 227
33 3.5 26 50 55.80 285
36 4 29 55 61.31 389
39 4 31 60 66.96 495
42 4.5 34 65 72.61 643
45 4.5 36 70 78.26 790
48 5 38 75 83.91 964
52 5 42 80 89.56 1190
56 6 45 85 95.07 1420
60 6 48 90 99.21
64 6 51 95 104.86
Note : * = ISO 4032
