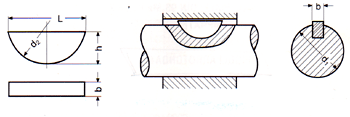

Standards : DIN 6888 - UNI 6606


Nominal Dimensions:

b X h L d2 d1
1.5 X 2.6 6.75 7 4-6
1.5 X 3.7 9.66 10
2 X 2.6 6.75 7 6-8
2 X 3.7 9.66 10 6-8
2.5 X 5 9.66 10 8-10
2.5 X 3.7 12.65 13
3 X 3.7 9.66 10 8-10
3 X 5 12.65 13 8-10
3 X 6.5 15.72 16
4 X 5 12.65 13 10-12
4 X 6.5 15.72 16 10-12
4 X 7.5 18.57 19
5 X 6.5 15.72 16 12-17
5 X 7.5 18.57 19 12-17
5 X 9 21.63 22
6 X 7.5 18.57 19 17-22
6 X 9 21.63 22 17-22
6 X 10 24.49 25 17-22
6 X 11 27.35 28
8 X 9 21.63 22 22-30
8 X 10 24.49 25
8 X 11 27.35 28 22-30
8 X 13 31.43 32
8 X 16 43.08 45
10 X 13 31.43 32 30-38
10 X 16 43.08 45
