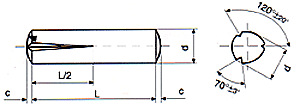

Standards : DIN 1472 - ISO 8745


Nominal Dimensions:

d 1 1.2 1.5 2 2.5 3 4 5 6 8 10 12 14 16
c= 0.15 0.18 0.23 0.3 0.4 0.45 0.6 0.75 0.9 1.2 1.5 1.8 2 2.5
r= 1 1.2 1.6 2 2.5 3 4 5 6 8 10 12 16 16
